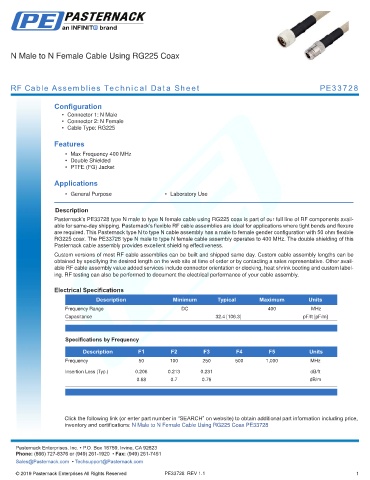

N Male to N Female Cable Using RG225 Coax
RF Cable Assemblies Technical Data Sheet PE33728
Configuration
• Connector 1: N Male
• Connector 2: N Female
• Cable Type: RG225
Features
• Max Frequency 400 MHz
• Double Shielded
• PTFE (FG) Jacket
Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE33728 type N male to type N female cable using RG225 coax is part of our full line of RF components avail-
able for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure
are required. This Pasternack type N to type N cable assembly has a male to female gender configuration with 50 ohm flexible
RG225 coax. The PE33728 type N male to type N female cable assembly operates to 400 MHz. The double shielding of this
Pasternack cable assembly provides excellent shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 400 MHz
Capacitance 32.4 [106.3] pF/ft [pF/m]
.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Typ.) 0.206 0.213 0.231 dB/ft
0.68 0.7 0.76 dB/m
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Cable Using RG225 Coax PE33728
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE33728 REV 1.1 1
