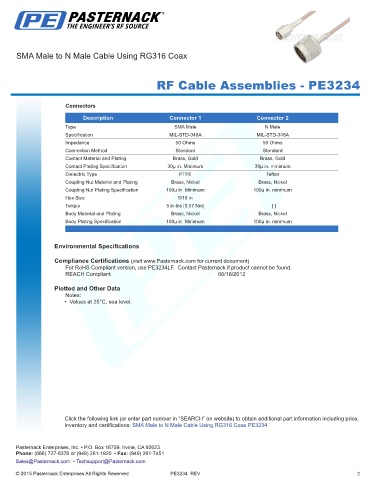

SMA Male to N Male Cable Using RG316 Coax
RF Cable Assemblies - PE3234
Connectors
Description Connector 1 Connector 2
Type SMA Male N Male
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Standard Standard
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30µ in. Minimum 30µ in. minimum
Dielectric Type PTFE Teflon
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100µ in. Minimum 100µ in. minimum
Hex Size 5/16 in
Torque 5 in-lbs [0.57 Nm] [ ]
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. Minimum 100µ in. minimum
.
Environmental Specifications
Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE3234LF. Contact Pasternack if product cannot be found.
REACH Compliant 06/18/2012
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to N Male Cable Using RG316 Coax PE3234
PE3234 REV 2
