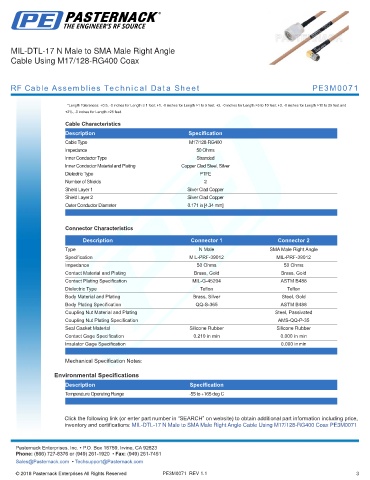

MIL-DTL-17 N Male to SMA Male Right Angle
Cable Using M17/128-RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3M0071

*Length Tolerances: +0.5, -0 inches for Length ≤ 1 foot; +1, -0 inches for Length >1 to 5 feet; +2, -0 inches for Length >5 to 10 feet; +3, -0 inches for Length >10 to 25 feet and
+2%, -0 inches for Length >25 feet.

Cable Characteristics
Description Specification
Cable Type M17/128-RG400
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Clad Copper
Shield Layer 2 Silver Clad Copper
Outer Conductor Diameter 0.171 in [4.34 mm]
.

Connector Characteristics

Description Connector 1 Connector 2
Type N Male SMA Male Right Angle
Specification MIL-PRF-39012 MIL-PRF-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification MIL-G-45204 ASTM B488
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Silver Steel, Gold
Body Plating Specification QQ-S-365 ASTM B488
Coupling Nut Material and Plating Steel, Passivated
Coupling Nut Plating Specification AMS-QQ-P-35
Seal Gasket Material Silicone Rubber Silicone Rubber
Contact Gage Specification 0.210 in min 0.000 in min
Insulator Gage Specification 0.000 in min
.
Mechanical Specification Notes:
Environmental Specifications

Description Specification
Temperature Operating Range -55 to +165 deg C
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 N Male to SMA Male Right Angle Cable Using M17/128-RG400 Coax PE3M0071
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0071 REV 1.1 3
