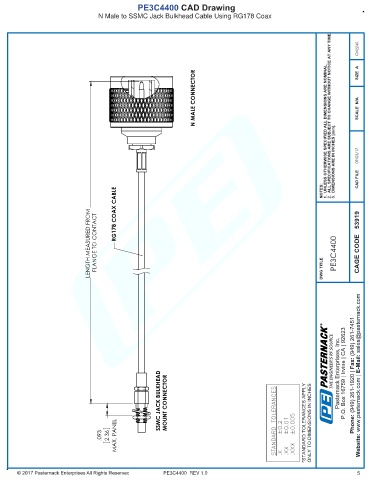

PE3C4400 CAD Drawing
N Male to SSMC Jack Bulkhead Cable Using RG178 Coax

CN2245

N MALE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SIZE A SCALE N/A

DIMENSIONS ARE IN INCHES [mm]. 2. 3. 09/03/17 CAD FILE

NOTES:
1.

LENGTH MEASURED FROM FLANGE TO CONTACT RG178 COAX CABLE DWG TITLE PE3C4400 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

SSMC JACK BULKHEAD MOUNT CONNECTOR

.093 2.36 MAX. PANEL STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4400 REV 1.0 5
