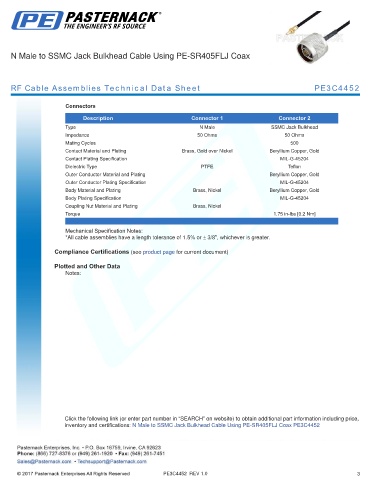

N Male to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax
RF Cable Assemblies Technical Data Sheet PE3C4452
Connectors
Description Connector 1 Connector 2
Type N Male SSMC Jack Bulkhead
Impedance 50 Ohms 50 Ohms
Mating Cycles 500
Contact Material and Plating Brass, Gold over Nickel Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204
Dielectric Type PTFE Teflon
Outer Conductor Material and Plating Beryllium Copper, Gold
Outer Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel Beryllium Copper, Gold
Body Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Torque 1.75 in-lbs [0.2 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax PE3C4452
PE3C4452 REV 1.0 3
