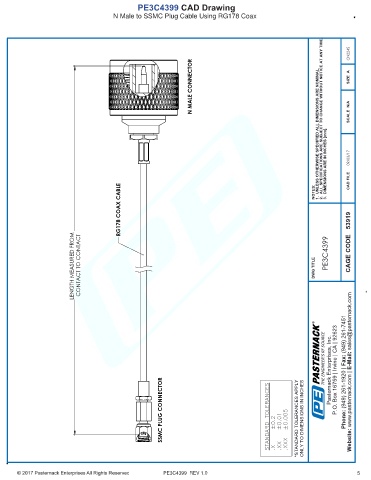

PE3C4399 CAD Drawing
N Male to SSMC Plug Cable Using RG178 Coax
CN2245
N MALE CONNECTOR ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SIZE A SCALE N/A
UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
DIMENSIONS ARE IN INCHES [mm]. CAD FILE 09/03/17
RG178 COAX CABLE NOTES: 1. 2. 3.
LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4399 CAGE CODE 53919
R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
SSMC PLUG CONNECTOR STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
PE3C4399 REV 1.0 5
