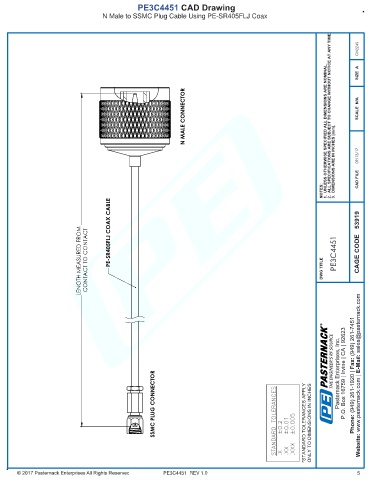

PE3C4451 CAD Drawing
N Male to SSMC Plug Cable Using PE-SR405FLJ Coax
CN2245
SIZE A
N MALE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
DIMENSIONS ARE IN INCHES [mm]. 09/13/17
NOTES: 1. 2. 3. CAD FILE
LENGTH MEASURED FROM CONTACT TO CONTACT PE-SR405FLJ COAX CABLE DWG TITLE PE3C4451 CAGE CODE 53919
R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
SSMC PLUG CONNECTOR STANDARD TOLERANCES .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
PE3C4451 REV 1.0 .X ±0.2 5
