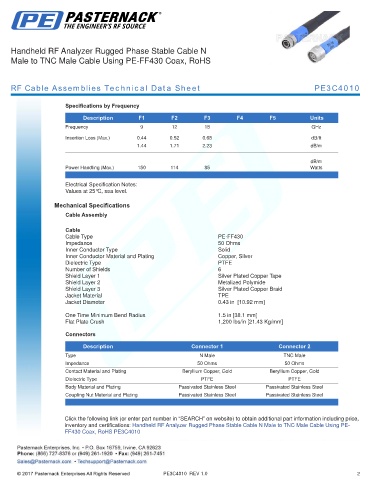

Handheld RF Analyzer Rugged Phase Stable Cable N
Male to TNC Male Cable Using PE-FF430 Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C4010

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 9 12 18 GHz
Insertion Loss (Max.) 0.44 0.52 0.68 dB/ft
1.44 1.71 2.23 dB/m

dB/m
Power Handling (Max.) 150 114 85 Watts
.
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-FF430
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 6
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Metalized Polymide
Shield Layer 3 Silver Plated Copper Braid
Jacket Material TPE
Jacket Diameter 0.43 in [10.92 mm]
.
One Time Minimum Bend Radius 1.5 in [38.1 mm]
Flat Plate Crush 1,200 lbs/in [21.43 Kg/mm]
Connectors

Description Connector 1 Connector 2
Type N Male TNC Male
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Handheld RF Analyzer Rugged Phase Stable Cable N Male to TNC Male Cable Using PE-
FF430 Coax, RoHS PE3C4010

PE3C4010 REV 1.0 2
