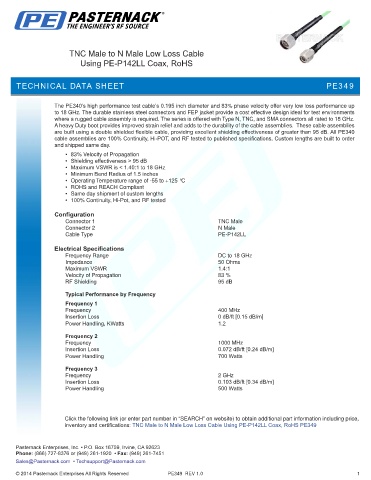

TNC Male to N Male Low Loss Cable
Using PE-P142LL Coax, RoHS

TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE349

The PE340’s high performance test cable’s 0.195 inch diameter and 83% phase velocity offer very low loss performance up
to 18 GHz. The durable stainless steel connectors and FEP jacket provide a cost effective design ideal for test environments
where a rugged cable assembly is required. The series is offered with Type N, TNC, and SMA connectors all rated to 18 GHz.
A heavy Duty boot provides improved strain relief and adds to the durability of the cable assemblies. These cable assemblies
are built using a double shielded flexible cable, providing excellent shielding effectiveness of greater than 95 dB. All PE340
cable assemblies are 100% Continuity, Hi-POT, and RF tested to published specifications. Custom lengths are built to order
and shipped same day.
• 83% Velocity of Propagation
• Shielding effectiveness > 95 dB
• Maximum VSWR is < 1.40:1 to 18 GHz
• Minimum Bend Radius of 1.5 inches
• Operating Temperature range of -55 to +125 °C
• ROHS and REACH Compliant
• Same day shipment of custom lengths
• 100% Continuity, Hi-Pot, and RF tested

Configuration
Connector 1 TNC Male
Connector 2 N Male
Cable Type PE-P142LL
Electrical Specifications
Frequency Range DC to 18 GHz
Impedance 50 Ohms
Maximum VSWR 1.4:1
Velocity of Propagation 83 %
RF Shielding 95 dB

Typical Performance by Frequency
Frequency 1
Frequency 400 MHz
Insertion Loss 0 dB/ft [0.15 dB/m]
Power Handling, KWatts 1.2

Frequency 2
Frequency 1000 MHz
Insertion Loss 0.072 dB/ft [0.24 dB/m]
Power Handling 700 Watts
Frequency 3
Frequency 2 GHz
Insertion Loss 0.103 dB/ft [0.34 dB/m]
Power Handling 500 Watts

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to N Male Low Loss Cable Using PE-P142LL Coax, RoHS PE349
