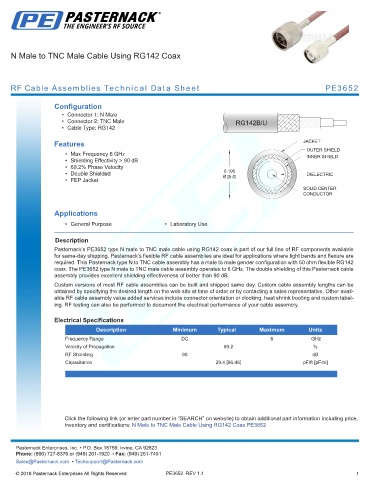

N Male to TNC Male Cable Using RG142 Coax

RF Cable Assemblies Technical Data Sheet PE3652

Configuration
• Connector 1: N Male
• Connector 2: TNC Male
• Cable Type: RG142

Features
• Max Frequency 6 GHz
• Shielding Effectivity > 90 dB
• 69.2% Phase Velocity
• Double Shielded
• FEP Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3652 type N male to TNC male cable using RG142 coax is part of our full line of RF components available
for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack type N to TNC cable assembly has a male to male gender configuration with 50 ohm flexible RG142
coax. The PE3652 type N male to TNC male cable assembly operates to 6 GHz. The double shielding of this Pasternack cable
assembly provides excellent shielding effectiveness of better than 90 dB.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Velocity of Propagation 69.2 %
RF Shielding 90 dB
Capacitance 29.4 [96.46] pF/ft [pF/m]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Male Cable Using RG142 Coax PE3652
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
