N Male to TNC Male Cable Using RG142 Coax

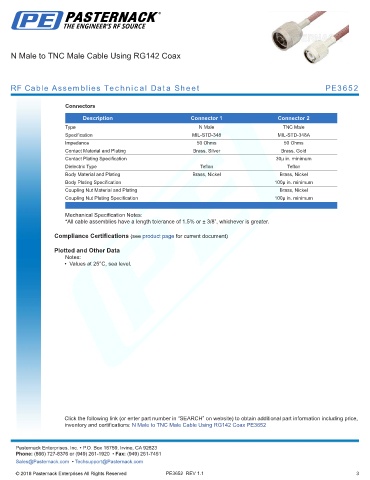

RF Cable Assemblies Technical Data Sheet PE3652

Connectors

Description Connector 1 Connector 2
Type N Male TNC Male
Specification MIL-STD-348 MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Silver Brass, Gold
Contact Plating Specification 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Male Cable Using RG142 Coax PE3652
-
