N Male to TNC Male Cable Using RG142 Coax

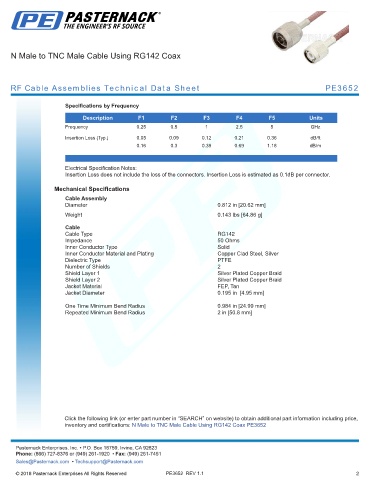

RF Cable Assemblies Technical Data Sheet PE3652

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 5 GHz
Insertion Loss (Typ.) 0.05 0.09 0.12 0.21 0.36 dB/ft
0.16 0.3 0.39 0.69 1.18 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.812 in [20.62 mm]
.
Weight 0.143 lbs [64.86 g]
Cable
Cable Type RG142
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.195 in [4.95 mm]
.
One Time Minimum Bend Radius 0.984 in [24.99 mm]
Repeated Minimum Bend Radius 2 in [50.8 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Male Cable Using RG142 Coax PE3652
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3652 REV 1.1 2
