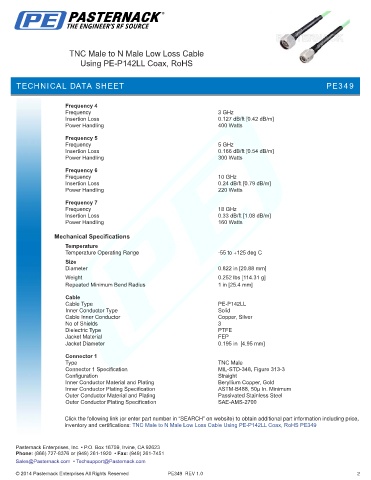

TNC Male to N Male Low Loss Cable
Using PE-P142LL Coax, RoHS

TECHNICAL D PE349
TECHNICAL DATA SHEETATA SHEET

Frequency 4
Frequency 3 GHz
Insertion Loss 0.127 dB/ft [0.42 dB/m]
Power Handling 400 Watts

Frequency 5
Frequency 5 GHz
Insertion Loss 0.166 dB/ft [0.54 dB/m]
Power Handling 300 Watts
Frequency 6
Frequency 10 GHz
Insertion Loss 0.24 dB/ft [0.79 dB/m]
Power Handling 220 Watts

Frequency 7
Frequency 18 GHz
Insertion Loss 0.33 dB/ft [1.08 dB/m]
Power Handling 160 Watts

Mechanical Specifications
Temperature
Temperature Operating Range -55 to +125 deg C
Size
Diameter 0.822 in [20.88 mm]
.
Weight 0.252 lbs [114.31 g]
Repeated Minimum Bend Radius 1 in [25.4 mm]
Cable
Cable Type PE-P142LL
Inner Conductor Type Solid
Cable Inner Conductor Copper, Silver
No of Shields 3
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter 0.195 in [4.95 mm]

Connector 1
Type TNC Male
Connector 1 Specification MIL-STD-348, Figure 313-3
Configuration Straight
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification ASTM-B488, 50µ In. Minimum
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification SAE-AMS-2700

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to N Male Low Loss Cable Using PE-P142LL Coax, RoHS PE349

PE349 REV 1.0 2
