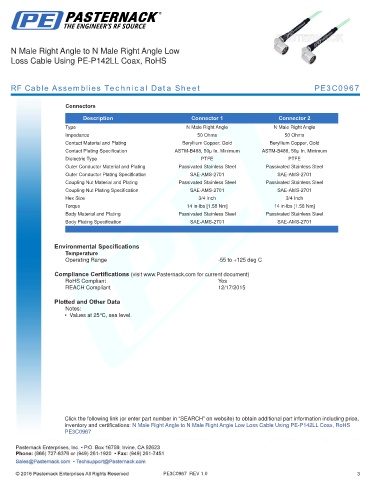

N Male Right Angle to N Male Right Angle Low
Loss Cable Using PE-P142LL Coax, RoHS
RF Cable Assemblies Technical Data Sheet PE3C0967
Connectors
Description Connector 1 Connector 2
Type N Male Right Angle N Male Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification ASTM-B488, 50µ In. Minimum ASTM-B488, 50µ In. Minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Outer Conductor Plating Specification SAE-AMS-2701 SAE-AMS-2701
Coupling Nut Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Plating Specification SAE-AMS-2701 SAE-AMS-2701
Hex Size 3/4 Inch 3/4 Inch
Torque 14 in-lbs [1.58 Nm] 14 in-lbs [1.58 Nm]
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Body Plating Specification SAE-AMS-2701 SAE-AMS-2701
.
Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 12/17/2015
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Low Loss Cable Using PE-P142LL Coax, RoHS
PE3C0967
PE3C0967 REV 1.0 3
