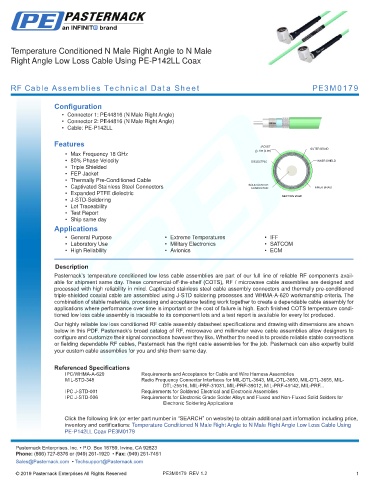

Temperature Conditioned N Male Right Angle to N Male
Right Angle Low Loss Cable Using PE-P142LL Coax

RF Cable Assemblies Technical Data Sheet PE3M0179

Configuration
• Connector 1: PE44816 (N Male Right Angle)
• Connector 2: PE44816 (N Male Right Angle)
• Cable: PE-P142LL

Features JACKET
• Max Frequency 18 GHz .195 [4.95] OUTER BRAID
• 80% Phase Velocity DIELECTRIC INNER SHIELD
• Triple Shielded
• FEP Jacket
• Thermally Pre-Conditioned Cable
• Captivated Stainless Steel Connectors SOLID CENTER INNER BRAID
CONDUCTOR
• Expanded PTFE dielectric
• J-STD-Soldering SECTION VIEW
• Lot Traceability
• Test Report
• Ship same day
Applications
• General Purpose • Extreme Temperatures • IFF
• Laboratory Use • Military Electronics • SATCOM
• High Reliability • Avionics • ECM
.
Description
Pasternack’s temperature conditioned low loss cable assemblies are part of our full line of reliable RF components avail-
able for shipment same day. These commercial-off-the-shelf (COTS), RF / microwave cable assemblies are designed and
processed with high reliability in mind. Captivated stainless steel cable assembly connectors and thermally pre-conditioned
triple-shielded coaxial cable are assembled using J-STD soldering processes and WHMA-A-620 workmanship criteria. The
combination of stable materials, processing and acceptance testing work together to create a dependable cable assembly for
applications where performance over time is important or the cost of failure is high. Each finished COTS temperature condi-
tioned low loss cable assembly is traceable to its component lots and a test report is available for every lot produced.
Our highly reliable low loss conditioned RF cable assembly datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave cable assemblies allow designers to
configure and customize their signal connections however they like. Whether the need is to provide reliable stable connections
or fielding dependable RF cables, Pasternack has the right cable assemblies for the job. Pasternack can also expertly build
your custom cable assemblies for you and ship them same day.

Referenced Specifications
IPC/WHMA-A-620 Requirements and Acceptance for Cable and Wire Harness Assemblies
MIL-STD-348 Radio Frequency Connector Interfaces for MIL-DTL-3643, MIL-DTL-3650, MIL-DTL-3655, MIL-
DTL-25516, MIL-PRF-31031, MIL-PRF-39012, MIL-PRF-49142, MIL-PRF...
IPC J-STD-001 Requirements for Soldered Electrical and Electronic Assemblies
IPC J-STD-006 Requirements for Electronic Grade Solder Alloys and Fluxed and Non-Fluxed Solid Solders for
Electronic Soldering Applications

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned N Male Right Angle to N Male Right Angle Low Loss Cable Using
PE-P142LL Coax PE3M0179 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0179 REV 1.2 1
