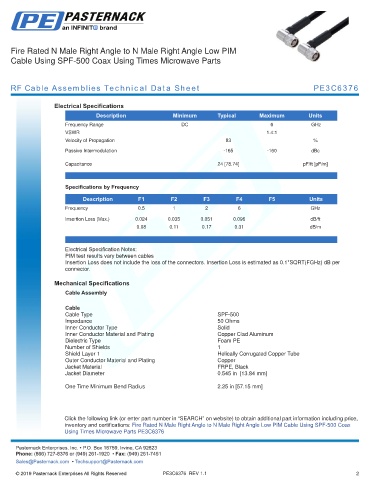

Fire Rated N Male Right Angle to N Male Right Angle Low PIM
Cable Using SPF-500 Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6376

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.4:1
Velocity of Propagation 83 %
Passive Intermodulation -165 -160 dBc

Capacitance 24 [78.74] pF/ft [pF/m]

.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2 6 GHz
Insertion Loss (Max.) 0.024 0.035 0.051 0.096 dB/ft
0.08 0.11 0.17 0.31 dB/m

.
Electrical Specification Notes:
PIM test results vary between cables
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1*SQRT(FGHz) dB per
connector.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type SPF-500
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Aluminum
Dielectric Type Foam PE
Number of Shields 1
Shield Layer 1 Helically Corrugated Copper Tube
Outer Conductor Material and Plating Copper
Jacket Material FRPE, Black
Jacket Diameter 0.545 in [13.84 mm]
.
One Time Minimum Bend Radius 2.25 in [57.15 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Fire Rated N Male Right Angle to N Male Right Angle Low PIM Cable Using SPF-500 Coax
Using Times Microwave Parts PE3C6376 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
