Outdoor Rated N Male Right Angle to N Male Right Angle Low PIM
Cable Using SPO-500 Coax Using Times Microwave Parts

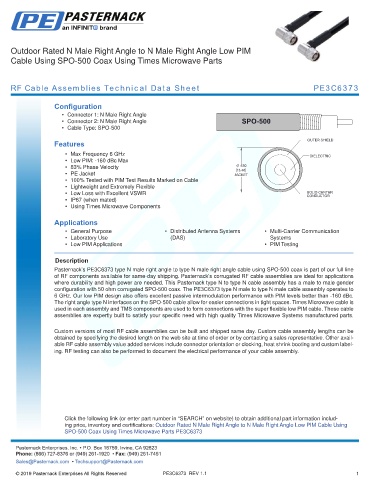

RF Cable Assemblies Technical Data Sheet PE3C6373

Configuration
• Connector 1: N Male Right Angle
• Connector 2: N Male Right Angle SPO-500
• Cable Type: SPO-500

Features OUTER SHIELD
• Max Frequency 6 GHz DIELECTRIC
• Low PIM: -160 dBc Max
• 83% Phase Velocity .530
13.46
• PE Jacket JACKET
• 100% Tested with PIM Test Results Marked on Cable
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR SOLID CENTER
CONDUCTOR
• IP67 (when mated)
• Using Times Microwave Components

Applications
• General Purpose • Distributed Antenna Systems • Multi-Carrier Communication
• Laboratory Use (DAS) Systems
• Low PIM Applications • PIM Testing
.
Description
Pasternack’s PE3C6373 type N male right angle to type N male right angle cable using SPO-500 coax is part of our full line
of RF components available for same-day shipping. Pasternack’s corrugated RF cable assemblies are ideal for applications
where durability and high power are needed. This Pasternack type N to type N cable assembly has a male to male gender
configuration with 50 ohm corrugated SPO-500 coax. The PE3C6373 type N male to type N male cable assembly operates to
6 GHz. Our low PIM design also offers excellent passive intermodulation performance with PIM levels better than -160 dBc.
The right angle type N interfaces on the SPO-500 cable allow for easier connections in tight spaces. Times Microwave cable is
used in each assembly and TMS components are used to form connections with the super flexible low PIM cable. These cable
assemblies are expertly built to satisfy your specific need with high quality Times Microwave Systems manufactured parts.

Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: Outdoor Rated N Male Right Angle to N Male Right Angle Low PIM Cable Using
SPO-500 Coax Using Times Microwave Parts PE3C6373 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6373 REV 1.1 1
