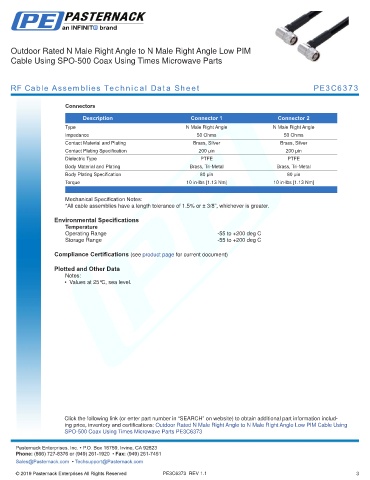

Outdoor Rated N Male Right Angle to N Male Right Angle Low PIM
Cable Using SPO-500 Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6373

Connectors

Description Connector 1 Connector 2
Type N Male Right Angle N Male Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Silver Brass, Silver
Contact Plating Specification 200 µin 200 µin
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Body Plating Specification 80 µin 80 µin
Torque 10 in-lbs [1.13 Nm] 10 in-lbs [1.13 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +200 deg C
Storage Range -55 to +200 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: Outdoor Rated N Male Right Angle to N Male Right Angle Low PIM Cable Using
SPO-500 Coax Using Times Microwave Parts PE3C6373 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6373 REV 1.1 3
