Plenum N Male Right Angle to N Male Right Angle
Low PIM Cable Using SPP-250-LLPL Coax , LF Solder

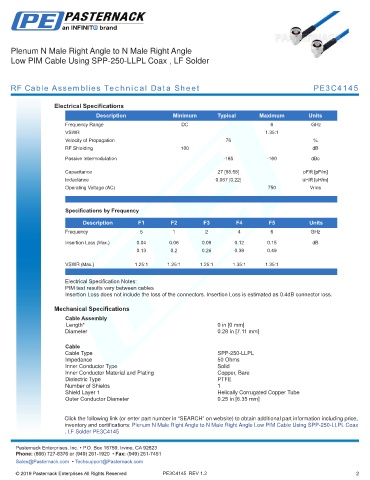

RF Cable Assemblies Technical Data Sheet PE3C4145

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.35:1
Velocity of Propagation 76 %
RF Shielding 100 dB
Passive Intermodulation -165 -160 dBc

Capacitance 27 [88.58] pF/ft [pF/m]
Inductance 0.067 [0.22] uH/ft [uH/m]
Operating Voltage (AC) 750 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 5 1 2 4 6 GHz
Insertion Loss (Max.) 0.04 0.06 0.08 0.12 0.15 dB
0.13 0.2 0.26 0.39 0.49

VSWR (Max.) 1.25:1 1.25:1 1.25:1 1.35:1 1.35:1
.
Electrical Specification Notes:
PIM test results vary between cables
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.4dB connector loss.

Mechanical Specifications
Cable Assembly
Length* 0 in [0 mm]
Diameter 0.28 in [7.11 mm]
.
Cable
Cable Type SPP-250-LLPL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Bare
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Helically Corrugated Copper Tube
Outer Conductor Diameter 0.25 in [6.35 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum N Male Right Angle to N Male Right Angle Low PIM Cable Using SPP-250-LLPL Coax
, LF Solder PE3C4145 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
