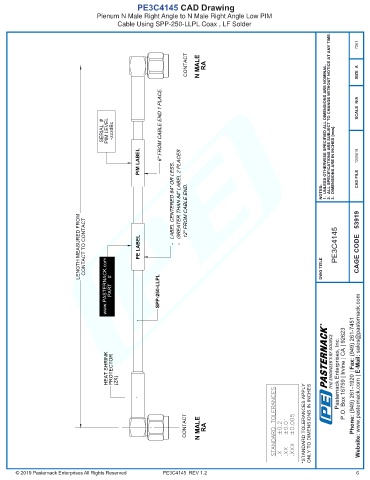

PE3C4145 CAD Drawing
Plenum N Male Right Angle to N Male Right Angle Low PIM
Cable Using SPP-250-LLPL Coax , LF Solder
7361
CONTACT N MALE RA SIZE A
SERIAL # PIM LEVEL -zzzdBc 6" FROM CABLE END 1 PLACE. 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
PIM LABEL - LABEL CENTERED 84" OR LESS. - GREATER THAN 84" LABEL 2 PLACES NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. CAD FILE
12/05/18
LENGTH MEASURED FROM CONTACT TO CONTACT PE LABEL 12" FROM CABLE END. PE3C4145 CAGE CODE 53919
www.PASTERNACK.com PART # SPP-250-LLPL DWG TITLE
