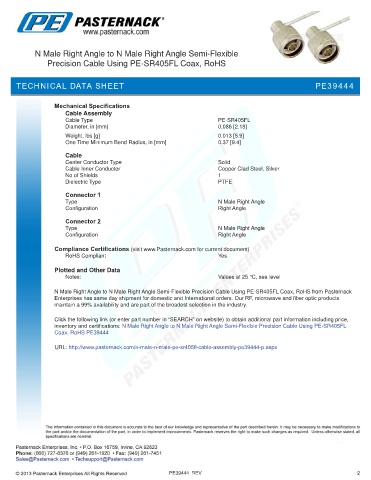

N Male Right Angle to N Male Right Angle Semi-Flexible
Precision Cable Using PE-SR405FL Coax, RoHS

TECHNICAL D PE39444
TECHNICAL DATA SHEETATA SHEET

Mechanical Specifications
Cable Assembly
Cable Type PE-SR405FL
Diameter, in [mm] 0.086 [2.18]
.
Weight, lbs [g] 0.013 [5.9]
One Time Minimum Bend Radius, in [mm] 0.37 [9.4]
Cable
Center Conductor Type Solid
Cable Inner Conductor Copper Clad Steel, Silver
No of Shields 1
Dielectric Type PTFE
Connector 1
Type N Male Right Angle
Configuration Right Angle

Connector 2
Type N Male Right Angle
Configuration Right Angle

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male Right Angle to N Male Right Angle Semi-Flexible Precision Cable Using PE-SR405FL Coax, RoHS from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Semi-Flexible Precision Cable Using PE-SR405FL
Coax, RoHS PE39444

URL: http://www.pasternack.com/n-male-n-male-pe-sr405fl-cable-assembly-pe39444-p.aspx

PE39444 REV 2
