N Male Right Angle to N Male Right Angle
Cable Using LMR-195 Coax

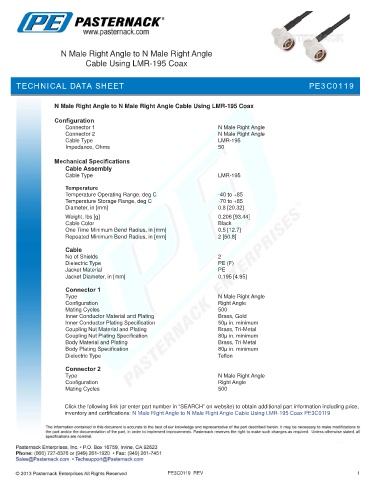

TECHNICAL D PE3C0119
TECHNICAL DATA SHEETATA SHEET

N Male Right Angle to N Male Right Angle Cable Using LMR-195 Coax

Configuration
Connector 1 N Male Right Angle
Connector 2 N Male Right Angle
Cable Type LMR-195
Impedance, Ohms 50
Mechanical Specifications
Cable Assembly
Cable Type LMR-195

Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -70 to +85
Diameter, in [mm] 0.8 [20.32]
.
Weight, lbs [g] 0.206 [93.44]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.5 [12.7]
Repeated Minimum Bend Radius, in [mm] 2 [50.8]

Cable
No of Shields 2
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.195 [4.95]

Connector 1
Type N Male Right Angle
Configuration Right Angle
Mating Cycles 500
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 50µ in. minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 80µ in. minimum
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 80µ in. minimum
Dielectric Type Teflon
Connector 2
Type N Male Right Angle
Configuration Right Angle
Mating Cycles 500

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using LMR-195 Coax PE3C0119

PE3C0119 REV 1
