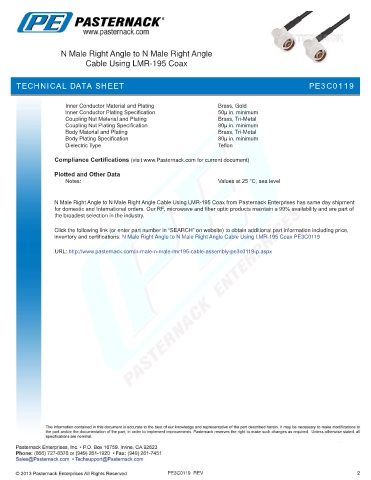

N Male Right Angle to N Male Right Angle
Cable Using LMR-195 Coax

TECHNICAL D PE3C0119
TECHNICAL DATA SHEETATA SHEET

Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 50µ in. minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 80µ in. minimum
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 80µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male Right Angle to N Male Right Angle Cable Using LMR-195 Coax from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using LMR-195 Coax PE3C0119

URL: http://www.pasternack.com/n-male-n-male-lmr195-cable-assembly-pe3c0119-p.aspx

PE3C0119 REV 2
