N Male Right Angle to N Male Right Angle Cable
Using LMR-400 Coax And Times Connectors

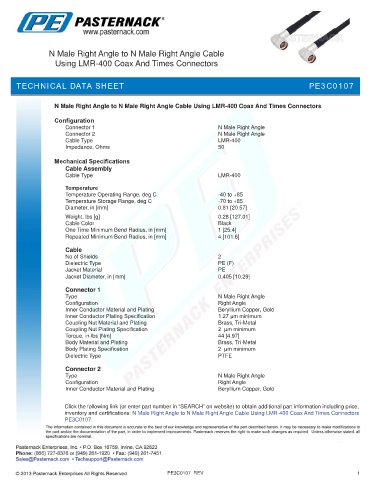

TECHNICAL D PE3C0107
TECHNICAL DATA SHEETATA SHEET

N Male Right Angle to N Male Right Angle Cable Using LMR-400 Coax And Times Connectors

Configuration
Connector 1 N Male Right Angle
Connector 2 N Male Right Angle
Cable Type LMR-400
Impedance, Ohms 50
Mechanical Specifications
Cable Assembly
Cable Type LMR-400

Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -70 to +85
Diameter, in [mm] 0.81 [20.57]
.
Weight, lbs [g] 0.28 [127.01]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 1 [25.4]
Repeated Minimum Bend Radius, in [mm] 4 [101.6]

Cable
No of Shields 2
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.405 [10.29]

Connector 1
Type N Male Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification 1.27 µm minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 2 µm minimum
Torque, in-lbs [Nm] 44 [4.97]
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 2 µm minimum
Dielectric Type PTFE
Connector 2
Type N Male Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Beryllium Copper, Gold

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using LMR-400 Coax And Times Connectors
PE3C0107

PE3C0107 REV 1
