N Male Right Angle to N Male Right Angle Cable
Using LMR-400 Coax And Times Connectors

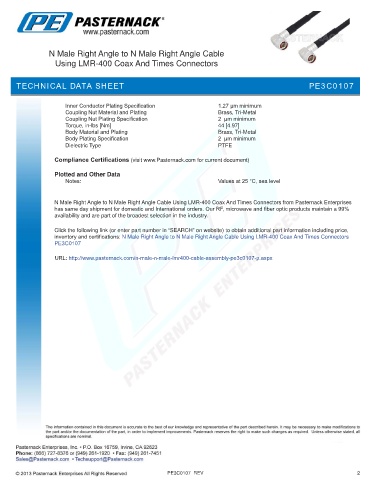

TECHNICAL D PE3C0107
TECHNICAL DATA SHEETATA SHEET

Inner Conductor Plating Specification 1.27 µm minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 2 µm minimum
Torque, in-lbs [Nm] 44 [4.97]
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 2 µm minimum
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male Right Angle to N Male Right Angle Cable Using LMR-400 Coax And Times Connectors from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using LMR-400 Coax And Times Connectors
PE3C0107

URL: http://www.pasternack.com/n-male-n-male-lmr400-cable-assembly-pe3c0107-p.aspx
