N Male Right Angle to N Male Right Angle
Cable Using LMR-SW396 Coax

TECHNICAL D PE3C0140
TECHNICAL DATA SHEETATA SHEET

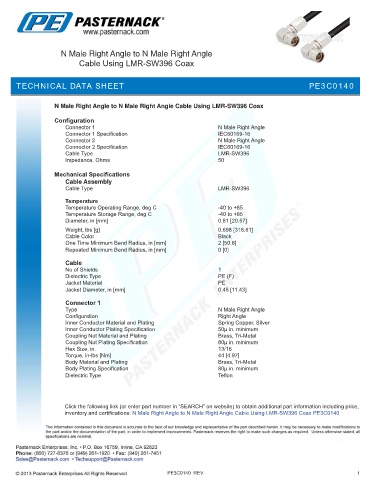

N Male Right Angle to N Male Right Angle Cable Using LMR-SW396 Coax

Configuration
Connector 1 N Male Right Angle
Connector 1 Specification IEC60169-16
Connector 2 N Male Right Angle
Connector 2 Specification IEC60169-16
Cable Type LMR-SW396
Impedance, Ohms 50

Mechanical Specifications
Cable Assembly
Cable Type LMR-SW396

Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -40 to +85
Diameter, in [mm] 0.81 [20.57]
.
Weight, lbs [g] 0.698 [316.61]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 2 [50.8]
Repeated Minimum Bend Radius, in [mm] 0 [0]
Cable
No of Shields 1
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.45 [11.43]

Connector 1
Type N Male Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Spring Copper, Silver
Inner Conductor Plating Specification 50µ in. minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 80µ in. minimum
Hex Size, in. 13/16
Torque, in-lbs [Nm] 44 [4.97]
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 80µ in. minimum
Dielectric Type Teflon

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using LMR-SW396 Coax PE3C0140

PE3C0140 REV 1
