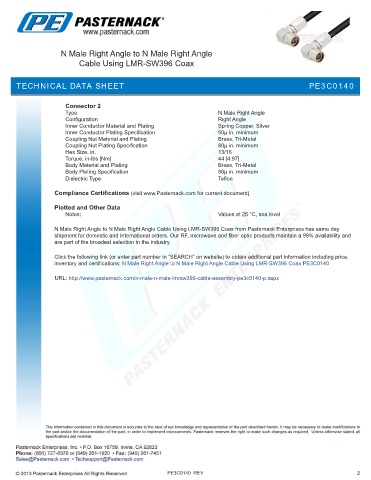

N Male Right Angle to N Male Right Angle
Cable Using LMR-SW396 Coax

TECHNICAL D PE3C0140
TECHNICAL DATA SHEETATA SHEET

Connector 2
Type N Male Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Spring Copper, Silver
Inner Conductor Plating Specification 50µ in. minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 80µ in. minimum
Hex Size, in. 13/16
Torque, in-lbs [Nm] 44 [4.97]
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 80µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male Right Angle to N Male Right Angle Cable Using LMR-SW396 Coax from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using LMR-SW396 Coax PE3C0140

URL: http://www.pasternack.com/n-male-n-male-lmrsw396-cable-assembly-pe3c0140-p.aspx

PE3C0140 REV 2
