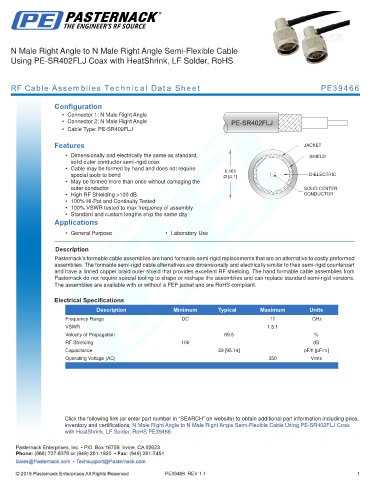

Page 2882 - BNC to N RF Cable Assembly Datasheets

N Male Right Angle to N Male Right Angle Semi-Flexible Cable
Using PE-SR402FLJ Coax with HeatShrink, LF Solder, RoHS

RF Cable Assemblies Technical Data Sheet PE39466

Configuration
• Connector 1: N Male Right Angle
• Connector 2: N Male Right Angle
• Cable Type: PE-SR402FLJ

Features
• Dimensionally and electrically the same as standard,
solid outer conductor semi-rigid coax
• Cable may be formed by hand and does not require
special tools to bend
• May be formed more than once without damaging the
outer conductor
• High RF Shielding >100 dB
• 100% Hi-Pot and Continuity Tested
• 100% VSWR tested to max frequency of assembly
• Standard and custom lengths ship the same day
Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s formable cable assemblies are hand formable semi-rigid replacements that are an alternative to costly preformed
assemblies. The formable semi-rigid cable alternatives are dimensionally and electrically similar to their semi-rigid counterpart
and have a tinned copper braid outer shield that provides excellent RF shielding. The hand formable cable assemblies from
Pasternack do not require special tooling to shape or reshape the assemblies and can replace standard semi-rigid versions.
The assemblies are available with or without a FEP jacket and are RoHS compliant.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Velocity of Propagation 69.5 %
RF Shielding 100 dB
Capacitance 29 [95.14] pF/ft [pF/m]
Operating Voltage (AC) 350 Vrms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Semi-Flexible Cable Using PE-SR402FLJ Coax
with HeatShrink, LF Solder, RoHS PE39466

PE39466 REV 1.1 1
