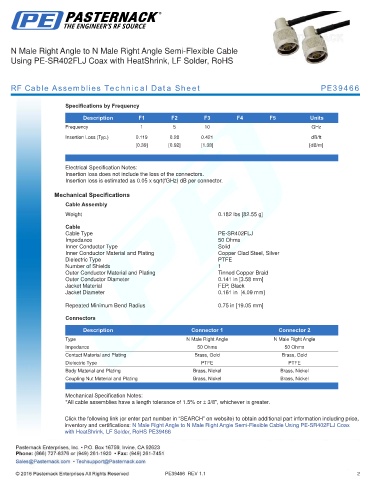

N Male Right Angle to N Male Right Angle Semi-Flexible Cable
Using PE-SR402FLJ Coax with HeatShrink, LF Solder, RoHS

RF Cable Assemblies Technical Data Sheet PE39466

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 5 10 GHz
Insertion Loss (Typ.) 0.119 0.28 0.421 dB/ft
[0.39] [0.92] [1.38] [dB/m]

.
Electrical Specification Notes:
Insertion loss does not include the loss of the connectors.
Insertion loss is estimated as 0.05 x sqrt(fGHz) dB per connector.

Mechanical Specifications
Cable Assembly
.
Weight 0.182 lbs [82.55 g]
Cable
Cable Type PE-SR402FLJ
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Tinned Copper Braid
Outer Conductor Diameter 0.141 in [3.58 mm]
Jacket Material FEP, Black
Jacket Diameter 0.161 in [4.09 mm]
.
Repeated Minimum Bend Radius 0.75 in [19.05 mm]

Connectors
Description Connector 1 Connector 2
Type N Male Right Angle N Male Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Male Right Angle Semi-Flexible Cable Using PE-SR402FLJ Coax
with HeatShrink, LF Solder, RoHS PE39466

PE39466 REV 1.1 2
