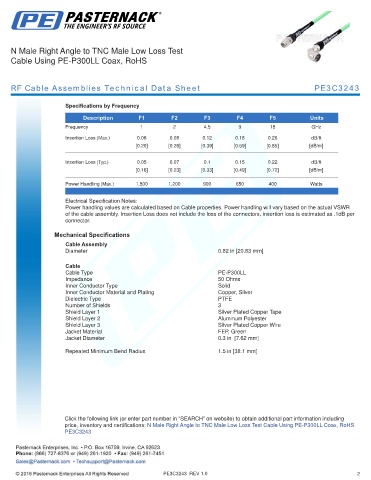

N Male Right Angle to TNC Male Low Loss Test
Cable Using PE-P300LL Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C3243

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 4.5 9 18 GHz
Insertion Loss (Max.) 0.06 0.08 0.12 0.18 0.26 dB/ft
[0.20] [0.26] [0.39] [0.59] [0.85] [dB/m]

Insertion Loss (Typ.) 0.05 0.07 0.1 0.15 0.22 dB/ft
[0.16] [0.23] [0.33] [0.49] [0.72] [dB/m]

Power Handling (Max.) 1,800 1,200 900 650 400 Watts
.
Electrical Specification Notes:
Power handling values are calculated based on Cable properties. Power handling will vary based on the actual VSWR
of the cable assembly. Insertion Loss does not include the loss of the connectors, insertion loss is estimated as .1dB per
connector.

Mechanical Specifications
Cable Assembly
Diameter 0.82 in [20.83 mm]
.
Cable
Cable Type PE-P300LL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 3
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper Wire
Jacket Material FEP, Green
Jacket Diameter 0.3 in [7.62 mm]
.
Repeated Minimum Bend Radius 1.5 in [38.1 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle to TNC Male Low Loss Test Cable Using PE-P300LL Coax, RoHS
PE3C3243
