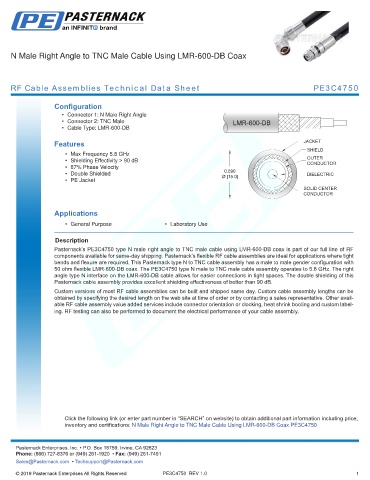

N Male Right Angle to TNC Male Cable Using LMR-600-DB Coax
RF Cable Assemblies Technical Data Sheet PE3C4750
Configuration
• Connector 1: N Male Right Angle
• Connector 2: TNC Male
• Cable Type: LMR-600-DB
Features
• Max Frequency 5.8 GHz
• Shielding Effectivity > 90 dB
• 87% Phase Velocity
• Double Shielded
• PE Jacket
Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C4750 type N male right angle to TNC male cable using LMR-600-DB coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack type N to TNC cable assembly has a male to male gender configuration with
50 ohm flexible LMR-600-DB coax. The PE3C4750 type N male to TNC male cable assembly operates to 5.8 GHz. The right
angle type N interface on the LMR-600-DB cable allows for easier connections in tight spaces. The double shielding of this
Pasternack cable assembly provides excellent shielding effectiveness of better than 90 dB.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to TNC Male Cable Using LMR-600-DB Coax PE3C4750
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3C4750 REV 1.0 1
