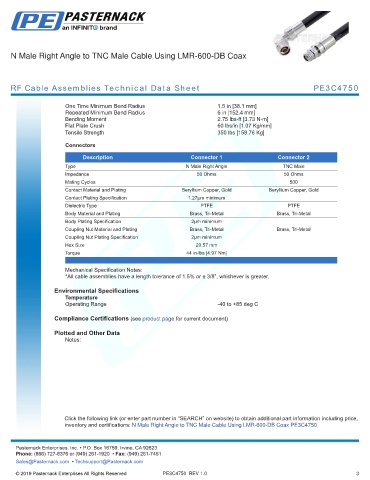

N Male Right Angle to TNC Male Cable Using LMR-600-DB Coax

RF Cable Assemblies Technical Data Sheet PE3C4750

One Time Minimum Bend Radius 1.5 in [38.1 mm]
Repeated Minimum Bend Radius 6 in [152.4 mm]
Bending Moment 2.75 lbs-ft [3.73 N-m]
Flat Plate Crush 60 lbs/in [1.07 Kg/mm]
Tensile Strength 350 lbs [158.76 Kg]

Connectors

Description Connector 1 Connector 2
Type N Male Right Angle TNC Male
Impedance 50 Ohms 50 Ohms
Mating Cycles 500
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification 1.27µm minimum
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Body Plating Specification 2µm minimum
Coupling Nut Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Coupling Nut Plating Specification 2µm minimum
Hex Size 20.57 mm
Torque 44 in-lbs [4.97 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to TNC Male Cable Using LMR-600-DB Coax PE3C4750
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4750 REV 1.0 3
