MIL-DTL-17 BNC Male to SMA Male Cable
Using M17/60-RG142 Coax

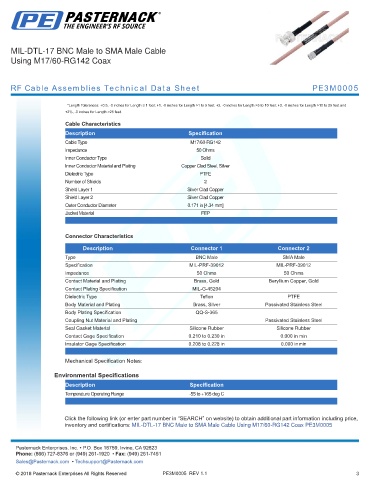

RF Cable Assemblies Technical Data Sheet PE3M0005

*Length Tolerances: +0.5, -0 inches for Length ≤ 1 foot; +1, -0 inches for Length >1 to 5 feet; +2, -0 inches for Length >5 to 10 feet; +3, -0 inches for Length >10 to 25 feet and
+2%, -0 inches for Length >25 feet.

Cable Characteristics
Description Specification
Cable Type M17/60-RG142
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Clad Copper
Shield Layer 2 Silver Clad Copper
Outer Conductor Diameter 0.171 in [4.34 mm]
Jacket Material FEP
.

Connector Characteristics
Description Connector 1 Connector 2
Type BNC Male SMA Male
Specification MIL-PRF-39012 MIL-PRF-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204
Dielectric Type Teflon PTFE
Body Material and Plating Brass, Silver Passivated Stainless Steel
Body Plating Specification QQ-S-365
Coupling Nut Material and Plating Passivated Stainless Steel
Seal Gasket Material Silicone Rubber Silicone Rubber
Contact Gage Specification 0.210 to 0.230 in 0.000 in min
Insulator Gage Specification 0.208 to 0.228 in 0.000 in min
.
Mechanical Specification Notes:
Environmental Specifications

Description Specification
Temperature Operating Range -55 to +165 deg C
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 BNC Male to SMA Male Cable Using M17/60-RG142 Coax PE3M0005
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0005 REV 1.1 3
