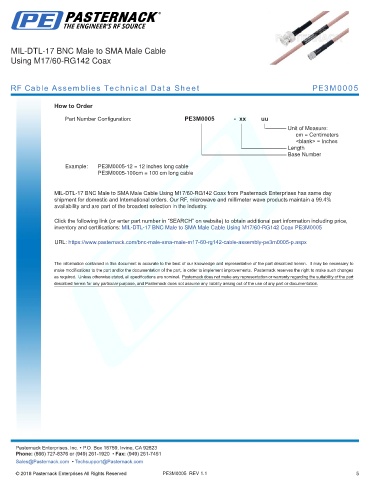

MIL-DTL-17 BNC Male to SMA Male Cable
Using M17/60-RG142 Coax

RF Cable Assemblies Technical Data Sheet PE3M0005

How to Order

Part Number Configuration: PE3M0005 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number

Example: PE3M0005-12 = 12 inches long cable
PE3M0005-100cm = 100 cm long cable

MIL-DTL-17 BNC Male to SMA Male Cable Using M17/60-RG142 Coax from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 BNC Male to SMA Male Cable Using M17/60-RG142 Coax PE3M0005

URL: https://www.pasternack.com/bnc-male-sma-male-m17-60-rg142-cable-assembly-pe3m0005-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0005 REV 1.1 5
