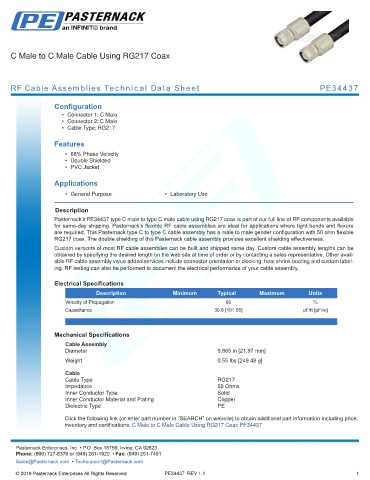

C Male to C Male Cable Using RG217 Coax

RF Cable Assemblies Technical Data Sheet PE34437

Configuration
• Connector 1: C Male
• Connector 2: C Male
• Cable Type: RG217

Features
• 66% Phase Velocity
• Double Shielded
• PVC Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE34437 type C male to type C male cable using RG217 coax is part of our full line of RF components available
for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure
are required. This Pasternack type C to type C cable assembly has a male to male gender configuration with 50 ohm flexible
RG217 coax. The double shielding of this Pasternack cable assembly provides excellent shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Velocity of Propagation 66 %
Capacitance 30.8 [101.05] pF/ft [pF/m]

.
Mechanical Specifications
Cable Assembly
Diameter 0.865 in [21.97 mm]
.
Weight 0.55 lbs [249.48 g]
Cable
Cable Type RG217
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper
Dielectric Type PE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male to C Male Cable Using RG217 Coax PE34437
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34437 REV 1.1 1
