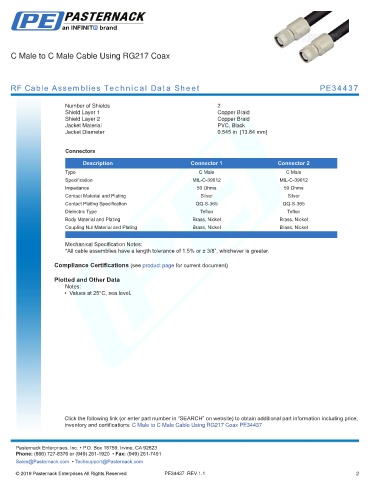

C Male to C Male Cable Using RG217 Coax

RF Cable Assemblies Technical Data Sheet PE34437

Number of Shields 2
Shield Layer 1 Copper Braid
Shield Layer 2 Copper Braid
Jacket Material PVC, Black
Jacket Diameter 0.545 in [13.84 mm]
.
Connectors

Description Connector 1 Connector 2
Type C Male C Male
Specification MIL-C-39012 MIL-C-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Silver Silver
Contact Plating Specification QQ-S-365 QQ-S-365
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male to C Male Cable Using RG217 Coax PE34437
-
