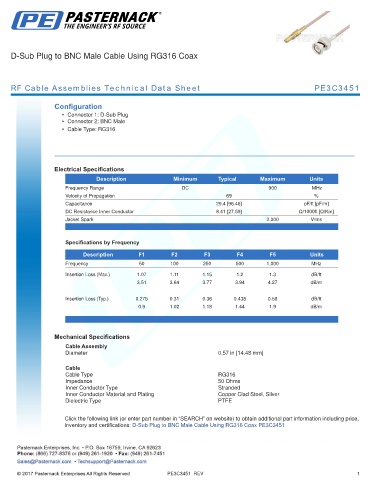

D-Sub Plug to BNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C3451

Configuration
• Connector 1: D-Sub Plug
• Connector 2: BNC Male
• Cable Type: RG316

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 900 MHz
Velocity of Propagation 69 %
Capacitance 29.4 [96.46] pF/ft [pF/m]
DC Resistance Inner Conductor 8.41 [27.59] Ω/1000ft [Ω/Km]
Jacket Spark 2,000 Vrms
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Max.) 1.07 1.11 1.15 1.2 1.3 dB/ft
3.51 3.64 3.77 3.94 4.27 dB/m

Insertion Loss (Typ.) 0.275 0.31 0.36 0.438 0.58 dB/ft
0.9 1.02 1.18 1.44 1.9 dB/m

.

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Plug to BNC Male Cable Using RG316 Coax PE3C3451

PE3C3451 REV 1
