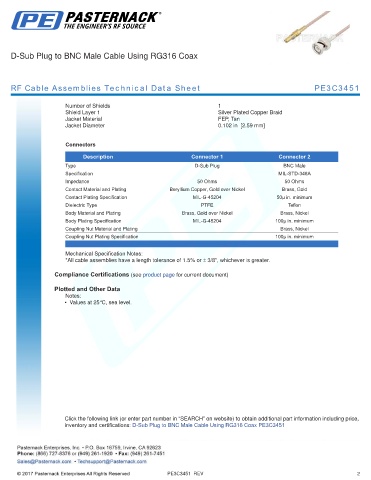

D-Sub Plug to BNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C3451

Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.102 in [2.59 mm]
.

Connectors

Description Connector 1 Connector 2
Type D-Sub Plug BNC Male
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold over Nickel Brass, Gold
Contact Plating Specification MIL-G-45204 50µ in. minimum
Dielectric Type PTFE Teflon
Body Material and Plating Brass, Gold over Nickel Brass, Nickel
Body Plating Specification MIL-G-45204 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Plug to BNC Male Cable Using RG316 Coax PE3C3451

PE3C3451 REV 2
