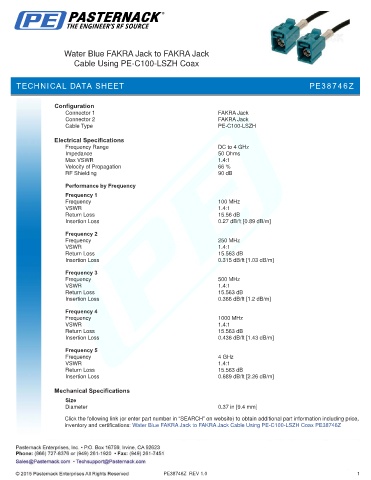

Water Blue FAKRA Jack to FAKRA Jack
Cable Using PE-C100-LSZH Coax
TECHNICAL D PE38746Z
TECHNICAL DATA SHEETATA SHEET
Configuration
Connector 1 FAKRA Jack
Connector 2 FAKRA Jack
Cable Type PE-C100-LSZH
Electrical Specifications
Frequency Range DC to 4 GHz
Impedance 50 Ohms
Max VSWR 1.4:1
Velocity of Propagation 66 %
RF Shielding 90 dB
Performance by Frequency
Frequency 1
Frequency 100 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Insertion Loss 0.27 dB/ft [0.89 dB/m]
Frequency 2
Frequency 250 MHz
VSWR 1.4:1
Return Loss 15.563 dB
Insertion Loss 0.315 dB/ft [1.03 dB/m]
Frequency 3
Frequency 500 MHz
VSWR 1.4:1
Return Loss 15.563 dB
Insertion Loss 0.366 dB/ft [1.2 dB/m]
Frequency 4
Frequency 1000 MHz
VSWR 1.4:1
Return Loss 15.563 dB
Insertion Loss 0.436 dB/ft [1.43 dB/m]
Frequency 5
Frequency 4 GHz
VSWR 1.4:1
Return Loss 15.563 dB
Insertion Loss 0.689 dB/ft [2.26 dB/m]
Mechanical Specifications
Size
Diameter 0.37 in [9.4 mm]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Water Blue FAKRA Jack to FAKRA Jack Cable Using PE-C100-LSZH Coax PE38746Z
PE38746Z REV 1.0 1
