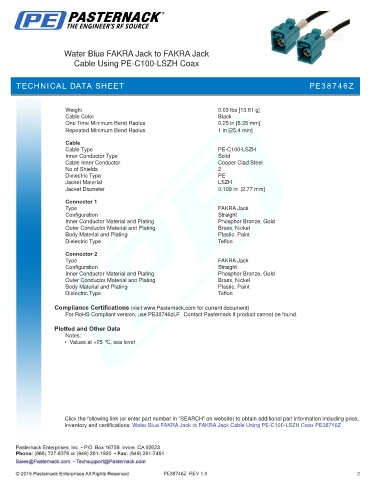

Water Blue FAKRA Jack to FAKRA Jack
Cable Using PE-C100-LSZH Coax

TECHNICAL D PE38746Z
TECHNICAL DATA SHEETATA SHEET

.
Weight 0.03 lbs [13.61 g]
Cable Color Black
One Time Minimum Bend Radius 0.25 in [6.35 mm]
Repeated Minimum Bend Radius 1 in [25.4 mm]

Cable
Cable Type PE-C100-LSZH
Inner Conductor Type Solid
Cable Inner Conductor Copper Clad Steel
No of Shields 2
Dielectric Type PE
Jacket Material LSZH
Jacket Diameter 0.109 in [2.77 mm]

Connector 1
Type FAKRA Jack
Configuration Straight
Inner Conductor Material and Plating Phosphor Bronze, Gold
Outer Conductor Material and Plating Brass, Nickel
Body Material and Plating Plastic, Paint
Dielectric Type Teflon

Connector 2
Type FAKRA Jack
Configuration Straight
Inner Conductor Material and Plating Phosphor Bronze, Gold
Outer Conductor Material and Plating Brass, Nickel
Body Material and Plating Plastic, Paint
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE38746zLF. Contact Pasternack if product cannot be found.

Plotted and Other Data
Notes:
• Values at +25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Water Blue FAKRA Jack to FAKRA Jack Cable Using PE-C100-LSZH Coax PE38746Z

PE38746Z REV 1.0 2
