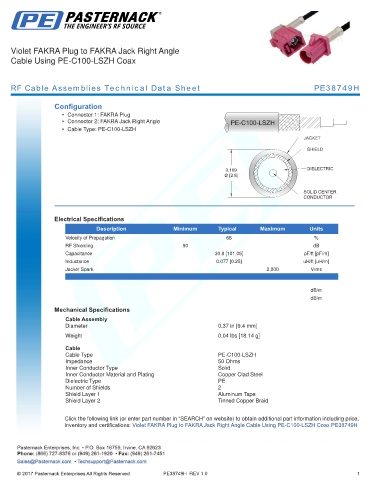

Violet FAKRA Plug to FAKRA Jack Right Angle
Cable Using PE-C100-LSZH Coax

RF Cable Assemblies Technical Data Sheet PE38749H

Configuration
• Connector 1: FAKRA Plug
• Connector 2: FAKRA Jack Right Angle
• Cable Type: PE-C100-LSZH

.
Electrical Specifications
Description Minimum Typical Maximum Units
Velocity of Propagation 66 %
RF Shielding 90 dB
Capacitance 30.8 [101.05] pF/ft [pF/m]
Inductance 0.077 [0.25] uH/ft [uH/m]
Jacket Spark 2,000 Vrms
.

dB/m
dB/m
Mechanical Specifications
Cable Assembly
Diameter 0.37 in [9.4 mm]
.
Weight 0.04 lbs [18.14 g]
Cable
Cable Type PE-C100-LSZH
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel
Dielectric Type PE
Number of Shields 2
Shield Layer 1 Aluminum Tape
Shield Layer 2 Tinned Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Violet FAKRA Plug to FAKRA Jack Right Angle Cable Using PE-C100-LSZH Coax PE38749H

PE38749H REV 1.0 1
