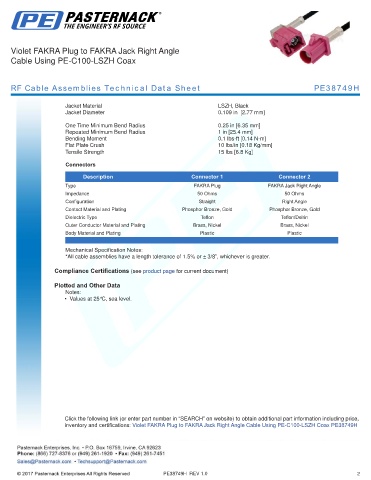

Violet FAKRA Plug to FAKRA Jack Right Angle
Cable Using PE-C100-LSZH Coax

RF Cable Assemblies Technical Data Sheet PE38749H

Jacket Material LSZH, Black
Jacket Diameter 0.109 in [2.77 mm]
.
One Time Minimum Bend Radius 0.25 in [6.35 mm]
Repeated Minimum Bend Radius 1 in [25.4 mm]
Bending Moment 0.1 lbs-ft [0.14 N-m]
Flat Plate Crush 10 lbs/in [0.18 Kg/mm]
Tensile Strength 15 lbs [6.8 Kg]
Connectors

Description Connector 1 Connector 2
Type FAKRA Plug FAKRA Jack Right Angle
Impedance 50 Ohms 50 Ohms
Configuration Straight Right Angle
Contact Material and Plating Phosphor Bronze, Gold Phosphor Bronze, Gold
Dielectric Type Teflon Teflon/Delrin
Outer Conductor Material and Plating Brass, Nickel Brass, Nickel
Body Material and Plating Plastic Plastic
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Violet FAKRA Plug to FAKRA Jack Right Angle Cable Using PE-C100-LSZH Coax PE38749H

PE38749H REV 1.0 2
