FME Plug Bulkhead to UMCX Plug Rear
Mount Cable Using 1.13mm Coax

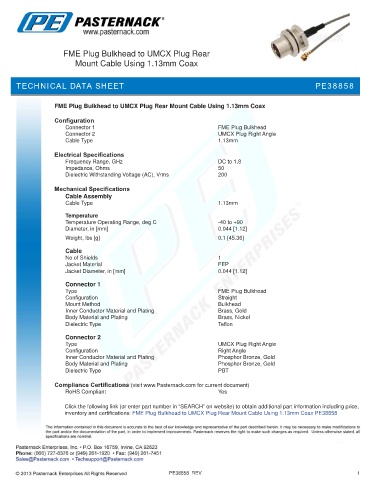

TECHNICAL D PE38858
TECHNICAL DATA SHEETATA SHEET

FME Plug Bulkhead to UMCX Plug Rear Mount Cable Using 1.13mm Coax

Configuration
Connector 1 FME Plug Bulkhead
Connector 2 UMCX Plug Right Angle
Cable Type 1.13mm

Electrical Specifications
Frequency Range, GHz DC to 1.8
Impedance, Ohms 50
Dielectric Withstanding Voltage (AC), Vrms 200

Mechanical Specifications
Cable Assembly
Cable Type 1.13mm

Temperature
Temperature Operating Range, deg C -40 to +90
Diameter, in [mm] 0.044 [1.12]
.
Weight, lbs [g] 0.1 [45.36]
Cable
No of Shields 1
Jacket Material FEP
Jacket Diameter, in [mm] 0.044 [1.12]

Connector 1
Type FME Plug Bulkhead
Configuration Straight
Mount Method Bulkhead
Inner Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 2
Type UMCX Plug Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Phosphor Bronze, Gold
Body Material and Plating Phosphor Bronze, Gold
Dielectric Type PBT

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FME Plug Bulkhead to UMCX Plug Rear Mount Cable Using 1.13mm Coax PE38858

PE38858 REV 1
