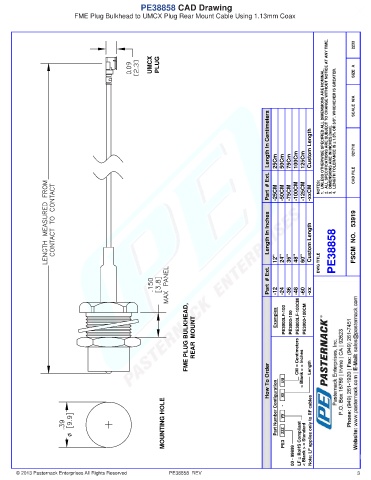

PE38858 CAD Drawing
FME Plug Bulkhead to UMCX Plug Rear Mount Cable Using 1.13mm Coax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233

UMCX PLUG SIZE A

SCALE N/A

Length In Centimeters 25Cm 50Cm 75Cm 100Cm 125Cm Custom Length 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 3. DIMENSIONS ARE IN INCHES [mm]. 4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER. 021710

Part # Ext. -25CM -50CM -75CM -100CM -125CM -xxCM NOTES: CAD FILE

Length In Inches Custom Length FSCM NO. 53919

12'' 24" 36" 48" 60" DWG TITLE PE38858

Part # Ext. -12 -24 -36 -48 -60 -xx

FME PLUG BULKHEAD, REAR MOUNT Examples PE3000LF-100 PE3000-100 CM = Centimeters PE3000LF-100CM PE3000-100CM

How To Order uu xx < Blank > = Inches Length

MOUNTING HOLE Part Number Configuration yy - zzz Note: LF applies only to RF cables

PE3
00 - 99999 LF = RoHS Compliant < Blank > = Standard

© 2013 Pasternack Enterprises All Rights Reserved PE38858 REV 3
