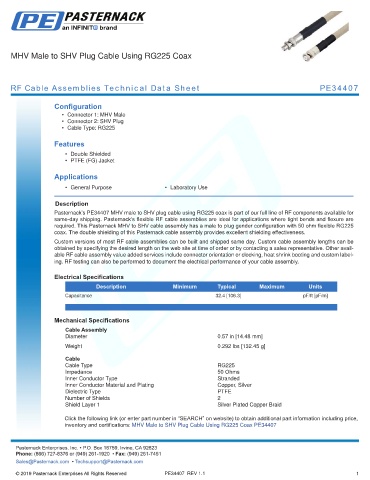

MHV Male to SHV Plug Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE34407

Configuration
• Connector 1: MHV Male
• Connector 2: SHV Plug
• Cable Type: RG225

Features
• Double Shielded
• PTFE (FG) Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE34407 MHV male to SHV plug cable using RG225 coax is part of our full line of RF components available for
same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack MHV to SHV cable assembly has a male to plug gender configuration with 50 ohm flexible RG225
coax. The double shielding of this Pasternack cable assembly provides excellent shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Capacitance 32.4 [106.3] pF/ft [pF/m]

.
Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Weight 0.292 lbs [132.45 g]
Cable
Cable Type RG225
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male to SHV Plug Cable Using RG225 Coax PE34407
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34407 REV 1.1 1
