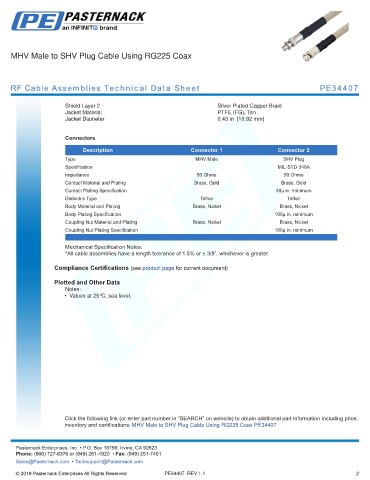

MHV Male to SHV Plug Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE34407

Shield Layer 2 Silver Plated Copper Braid
Jacket Material PTFE (FG), Tan
Jacket Diameter 0.43 in [10.92 mm]
.

Connectors
Description Connector 1 Connector 2
Type MHV Male SHV Plug
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male to SHV Plug Cable Using RG225 Coax PE34407
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34407 REV 1.1 2
