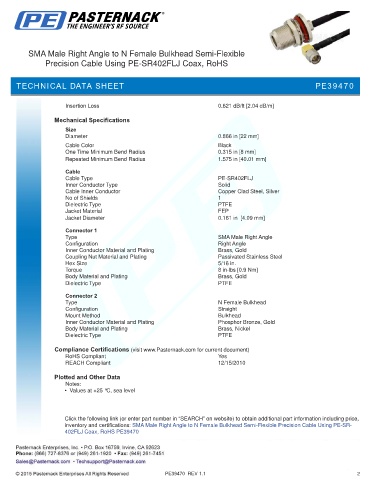

SMA Male Right Angle to N Female Bulkhead Semi-Flexible
Precision Cable Using PE-SR402FLJ Coax, RoHS

TECHNICAL D PE39470
TECHNICAL DATA SHEETATA SHEET

Insertion Loss 0.621 dB/ft [2.04 dB/m]

Mechanical Specifications
Size
Diameter 0.866 in [22 mm]
.
Cable Color Black
One Time Minimum Bend Radius 0.315 in [8 mm]
Repeated Minimum Bend Radius 1.575 in [40.01 mm]

Cable
Cable Type PE-SR402FLJ
Inner Conductor Type Solid
Cable Inner Conductor Copper Clad Steel, Silver
No of Shields 1
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter 0.161 in [4.09 mm]

Connector 1
Type SMA Male Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Brass, Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size 5/16 in.
Torque 8 in-lbs [0.9 Nm]
Body Material and Plating Brass, Gold
Dielectric Type PTFE
Connector 2
Type N Female Bulkhead
Configuration Straight
Mount Method Bulkhead
Inner Conductor Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 12/15/2010

Plotted and Other Data
Notes:
• Values at +25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to N Female Bulkhead Semi-Flexible Precision Cable Using PE-SR-
402FLJ Coax, RoHS PE39470

PE39470 REV 1.1 2
