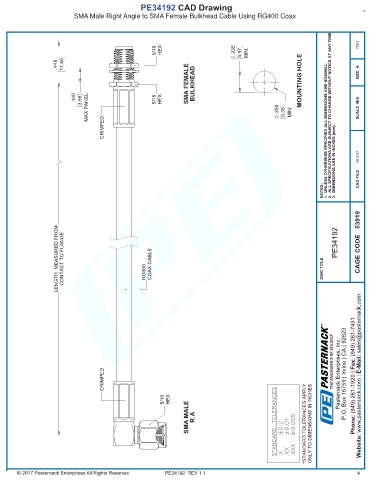

PE34192 CAD Drawing
SMA Male Right Angle to SMA Female Bulkhead Cable Using RG400 Coax
5/16 HEX .235 7361
5.97 MIN.
.449 11.40
SMA FEMALE BULKHEAD MOUNTING HOLE SIZE A
MAX PANEL .250 6.35 MIN. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
.140 3.56 5/16 HEX
CRIMPED 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
3. DIMENSIONS ARE IN INCHES [mm]. 101217
NOTES: CAD FILE
LENGTH MEASURED FROM CONTACT TO FLANGE RG400 COAX CABLE DWG TITLE PE34192 CAGE CODE 53919
R
THE ENGINEER'S RF SOURCE
CRIMPED Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
5/16 HEX
SMA MALE R.A STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
