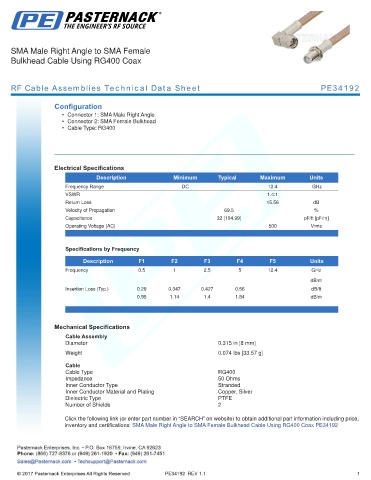

Page 2331 - NEX10 to SMA RF Cable Assembly Datasheets

SMA Male Right Angle to SMA Female
Bulkhead Cable Using RG400 Coax

RF Cable Assemblies Technical Data Sheet PE34192

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: SMA Female Bulkhead
• Cable Type: RG400

.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.4:1
Return Loss 15.56 dB
Velocity of Propagation 69.5 %
Capacitance 32 [104.99] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2.5 5 12.4 GHz
dB/m
Insertion Loss (Typ.) 0.29 0.347 0.427 0.56 dB/ft
0.95 1.14 1.4 1.84 dB/m

.

Mechanical Specifications

Cable Assembly
Diameter 0.315 in [8 mm]
.
Weight 0.074 lbs [33.57 g]
Cable
Cable Type RG400
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 2

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Female Bulkhead Cable Using RG400 Coax PE34192

PE34192 REV 1.1 1
