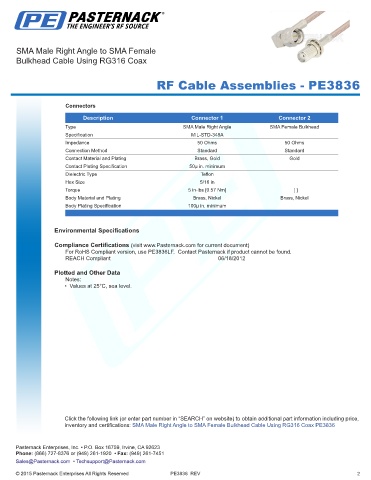

SMA Male Right Angle to SMA Female
Bulkhead Cable Using RG316 Coax
RF Cable Assemblies - PE3836
Connectors
Description Connector 1 Connector 2
Type SMA Male Right Angle SMA Female Bulkhead
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Standard Standard
Contact Material and Plating Brass, Gold Gold
Contact Plating Specification 50µ in. minimum
Dielectric Type Teflon
Hex Size 5/16 in
Torque 5 in-lbs [0.57 Nm] [ ]
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum
.
Environmental Specifications
Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE3836LF. Contact Pasternack if product cannot be found.
REACH Compliant 06/18/2012
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Female Bulkhead Cable Using RG316 Coax PE3836
PE3836 REV 2
